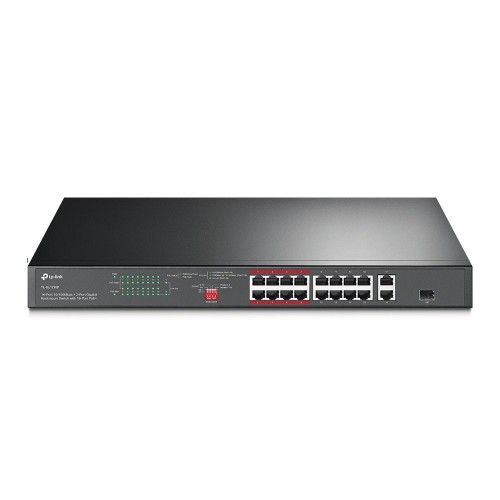

TP-LINK Switch 16x100Mbps (16xPOE+) + 2x1000Mbps + 1xGigabit kombó SFP, TL-SL1218MP TL-SL1218P

Interface
• 16× PoE+ 10/100 Mbps RJ45 Ports
• 2× 10/100/1000 Mbps RJ45 Ports
• 1× Combo Gigabit SFP Slot


Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF


Fan Quantity
2 Fans


Physical Security Lock
Yes


Power Supply
100–240V AC, 50/60 Hz


PoE+ Ports(RJ45)
• Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16
• PoE Power Budget: 150 W


Dimensions ( W x D x H )
17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)


Max Power Consumption
• 12.71 W (220/50Hz. no PD connected)
• 172.8 W (220/50Hz. with 150 W PD connected)


Max Heat Dissipation
• 43.34 BTU/h (no PD connected)
• 589.25 BTU/h (with 150 W PD connected)







PERFORMANCE




Switching Capacity
7.2 Gbps


Packet Forwarding Rate
5.36 Mpps


MAC Address Table
8K


Jumbo Frame
10 KB







SOFTWARE FEATURES




Advanced Features
• Compatible With IEEE 802.3at/af Compliant PDs
• Extend Mode (Up to 250m PoE power supply and data transmission)
• Priority Mode
• Isolation Mode
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control


Transmission Method
Store-And-Forward







OTHERS




Certification
CE, FCC, RoHS


Package Contents
• TL-SL1218P
• Power Cable
• Installation Guide
• Two mounting brackets and the fittings


Environment
• Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing



TL-SL1218P KSH szám: 8517620000
