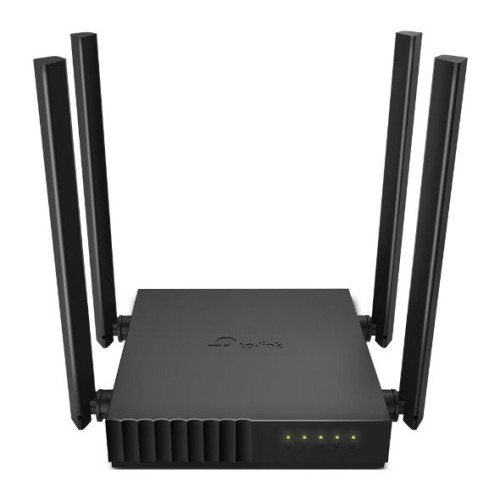

TP-LINK Wireless Router Dual Band AC1200 1xWAN(100Mbps) + 4xLAN(100Mbps), Archer C54 ARCHER C54

Standards
Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz


WiFi Speeds
AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)


WiFi Range
3 Bedroom Houses
4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range


WiFi Capacity
Medium
Dual-Band
Allocate devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients


Working Modes
Router Mode
Access Point Mode
Range Extender Mode







HARDWARE




Processor
Single-Core CPU


Ethernet Ports
1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports


Buttons
WPS/Reset Button


Power
9 V ? 0.85 A







BIZTONSÁG




WiFi Encryption
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)


Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway


Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network







SOFTWARE




Protocols
IPv4
IPv6


Parental Controls
URL Filtering
Time Controls


WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP


Quality of Service
QoS by Device


NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP


IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN


DHCP
Address Reservation
DHCP Client List
Server


DDNS
TP-Link
NO-IP
DynDNS


Management
Tether App
Webpage
Check Web Emulator>







PHYSICAL




Dimensions (W×D×H)
4.5 × 4.2 × 1.0 in
(115 × 106.7 × 24.3 mm)


Package Contents
Wi-Fi Router Archer C54
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide







OTHER




System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)


Certifications
FCC, CE, RoHS


Environment
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~60? (-40? ~140?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing







TEST DATA




WiFi Transmission Power
CE EIRP:
ARCHER C54 KSH szám: 8517620000
