ASUS Wireless Router Dual Band AX5400 1xWAN(1000Mbps) + 4xLAN(1000Mbps) + 1xUSB, GS-AX5400 GS-AX5400

Model Name


GS-AX5400






Network Standard


IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

IEEE 802.11ax

IPv4

IPv6






Product Segment


AX5400 ultimate AX performance : 4804 Mbps+ 574 Mbps






AX technology


Yes






Data Rate


2.4GHz N: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 500Mbps

5GHz AC: 4x4 (Tx/Rx) 1024 QAM 20/40/80MHz, up to 2167Mbps

2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps

5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps






Antenna


External antenna x 4






Transmit/Receive


2.4 GHz 2 x 2

5 GHz 4 x 4






Processor


1.5 GHz tri-core processor






Memory


256 MB Flash
512 MB RAM






Boosts speed


OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth






Operating Frequency


2.4G Hz / 5 GHz

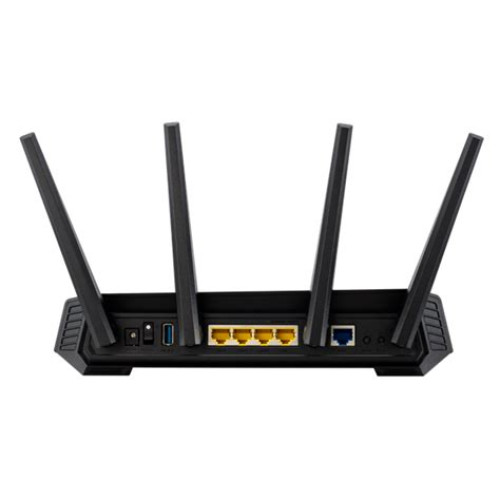

Ports


RJ45 for Gigabits BaseT for WAN x 1
RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1






Button


WPS Button
Reset Button
Power Switch






LED Indicator


Power x 1
2.4G x 1
5G x 1
WAN x 1






Power Supply


AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current






Package content


GS-AX5400 Router
RJ-45 cable
Power adapter
Warranty card
Quick start guide






Product Weight (g)


701.3 g






AiMesh


AiMesh : Yes

Primary AiMesh router : Yes

AiMesh node : Yes






Router APP


ASUS Router APP : Yes






Game


Game Boost/acceleration : Yes

ROG_First : Yes

OpenNAT (Game Profile) : Yes

Gaming port : Yes






Alexa


Support Alexa skill : Yes






AiProtection


AiProtection : AiProtection Pro

Router Security Assessment : Yes

Malicious site blocking : Yes

Two-Way IPS : Yes

Infected Device Prevention and Blocking : Yes






Parental Control


Parental Control : Yes

Parental Control Customized Internet schedule : Yes






Traffic Control


Adaptive QoS : Yes

Bandwidth Monitor : Yes

Bandwidth limiter : Yes

Maximum Bandwidth limiter rule : 32

Traditional QoS : Yes

Maximum Traditional QoS rule : 32

Traffic Monitor : Yes

Real-time traffic monitor : Yes

Wired Traffic Monitor : Yes

Wireless Traffic Monitor : Yes

Traffic Analyzer : Yes

Traffic analysis period : Daily, Weekly, Monthly

Website history : Yes






Wireless


IPv6 : Yes

Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support

UTF-8 SSID : Yes

Guest Network : Yes

Maximum Guest Network rule : 2.4GHz x3, 5GHz x3

WPS : Yes

Wi-Fi MAC address filter : Yes

Maximum MAC filters : 64

Wireless scheduler : Yes

Wi-Fi Radar : Yes

Airtime fairness : Yes

RADIUS Server : No

Universal beamforming : Yes






WAN


Explicit beamforming : Yes

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN : Yes

WAN Aggregation : Yes

3G/4G LTE dongle : Yes

Android tethering : Yes

Port forwarding : Yes

Maximum port forwarding rule : 64

Port triggering : Yes

Maximum port triggering rule : 32

DMZ : Yes

DDNS : Yes

NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay






LAN


DHCP Server : Yes

IGMP snooping : Yes

IPTV : Yes

LAN Link Aggregation : Yes

Manually assign IP address : Yes

Maximum manually assign IP address rule : 64






VPN


VPN Client L2PT : Yes

VPN Client OVPN : Yes

VPN Client PPTP : Yes

VPN Server IPSec : Yes

VPN Server OVPN : Yes

VPN Server PPTP : Yes

VPN Fusion : Yes






USB application


File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

HDD hibernation : Yes

Safely Remove disk : Yes

AiCloud : Yes

Download master : Yes

AiDisk : Yes

Media Server : Yes

Time Machine : Yes

Samba Server : Yes

FTP Server : Yes

Shared Folder privileges : Yes






Administration


Operating mode : Wireless router mode
Access point mode
Media bridge mode
Repeater mode
AiMesh node mode

Operating system : ASUSWRT

Free OS upgrade : Yes

Firewall : Yes

Maximum Firewall keyword filter : 64

Maximum Firewall network service filter : 32

Maximum Firewall URL filter : 64

Wake on LAN (WOL) : Yes

SSH : Yes

Configuration backup and restore : Yes

Diagnosis tools : Yes

Feedback system : Yes

System log : Yes











ROG STRIX GS-AX5400
