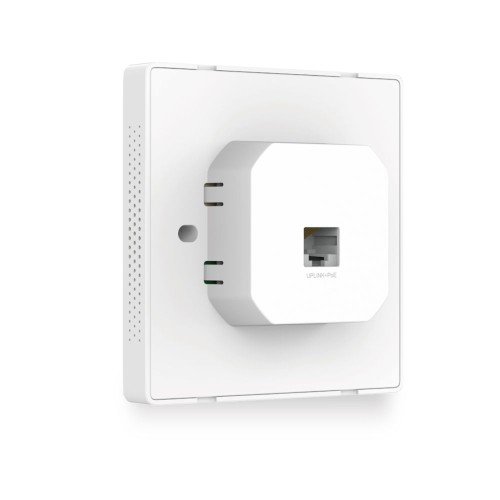

TP-LINK Wireless Access Point Dual Band AC1200 Falra rögzíthető, EAP230-WALL EAP230-WALL

Interface
Uplink: 10/100/1000 Mbps Ethernet Port*1
Downlink: 10/100/1000 Mbps Ethernet Port*1


Physical Security Lock
No


Button
LED/Wi-Fi Button, RESET


Power Supply
802.3af/802.3at PoE


Power Consumption
7 W


Dimensions
3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)


Antenna
2 Dual-Band Antennas
2.4GHz: 2*4 dBi
5GHz: 2*3.6 dBi


Mounting
Wall Plate Mounting


Hardware Watch Dog
Yes







WIRELESS FEATURES




Wireless Standards
IEEE 802.11n/g/b/ac


Frequency
2.4GHz and 5GHz


Signal Rate
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps


Wireless Functions
16 SSIDs(Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
MU-MIMO
Band Steering
Beamforming


Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK


Transmission Power
CE:
≤20 dBm (2.4 GHz, EIRP)
≤23 dBm (5 GHz, EIRP)







MANAGEMENT




Omada Cloud Access
Yes


Omada App
Yes


Omada Cloud Controller
Yes


Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller


Omada Controller Software
Yes


Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)


Email Alerts
Yes


LED ON/OFF Control
Yes


Management MAC Access Control
Yes


SNMP
v1,v2c


System Logging Local/Remote Syslog
Local/Remote Syslog


SSH
Yes


Web-based Management
HTTP/HTTPS


L3 Management
Yes


Multi-site Management
Yes


Management VLAN
Yes







OTHERS




Certification
CE, RoHS


Package Contents
Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
EAP230-Wall
Installation Guide
Mounting Screw


System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10


Environment
Operating Temperature: 0-40 ? (32-104 ?)
Storage Temperature: -40-70 ? (-40-158 ?)
Operating Humidity: 10-90% non-condensing
Storage Humidity: 5-90% non-condensing



EAP230-WALL KSH szám: 8517620000
