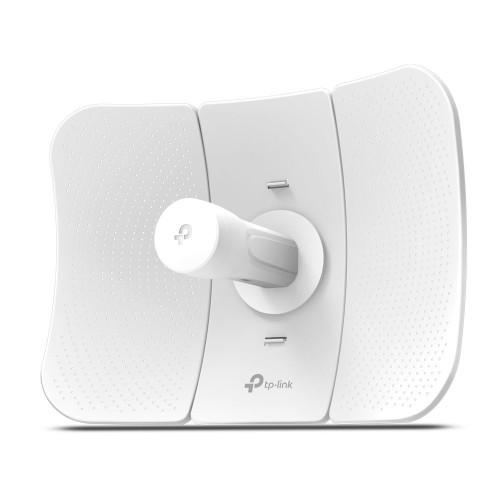

TP-LINK Wireless Access Point 5Ghz 150Mbps Kültéri, CPE605 CPE605

HARDWARE FEATURES




Processor
Qualcomm 560MHz CPU, MIPS 74Kc


Memory
64MB DDR2 RAM,8MB Flash


Interface
1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button


Power Supply
Passive Power over Ethernet via LAN (+4,5pins, -7,8pins)
Voltage range: 16-27VDC


Dimensions ( W x D x H )
350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)


Antenna Gain
23dBi


Antenna Beamwidth
7°(Azimuth), 10°(Elevation)


Protection
15KV ESD Protection
6KV Lightning Protection


Enclosure
Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design







WIRELESS FEATURES




Wireless Standards
IEEE 802.11a/n


Proprietary Protocol
TDMA Mode (with Pharos MAXtream enabled)


Wireless Speeds
Up to 150Mbps (40MHz,Dynamic)
Up to 72.2Mbps (20MHz,Dynamic)
Up to 36.1Mbps (10MHz,Dynamic)
Up to 18.05Mbps (5MHz,Dynamic)


Frequency
5.15~5.85GHz


Transmit Power
Max. 23dBm (Adjustable power by 1dBm)







SOFTWARE FEATURES




IPv6
Yes


Network Configuration
WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/ Ping Forbidden/DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding


Wireless Configurations
Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia


Management
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server


System Tools
Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute


System-level Optimizations
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog







POE ADAPTER FEATURES




Dimensions(W x D x H)
85.8×43.9×29.7 mm


Interfaces
1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)


Button
Remote Reset Button


Power Status LEDs
Green


Input
100-240VAC, 50/60Hz


Output
24VDC, 0.6A Max
+4, 5pins, -7, 8pins. (Support up to 60m Power over Ethernet)


Efficiency
>84.29%


Certifications
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark







OTHERS




Certification
CE, FCC, RoHS, IP65


Package Contents
Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide


System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.


Environment
Operating Temperature: -40?~70? (-40?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing



CPE605 KSH szám: 8517620000
