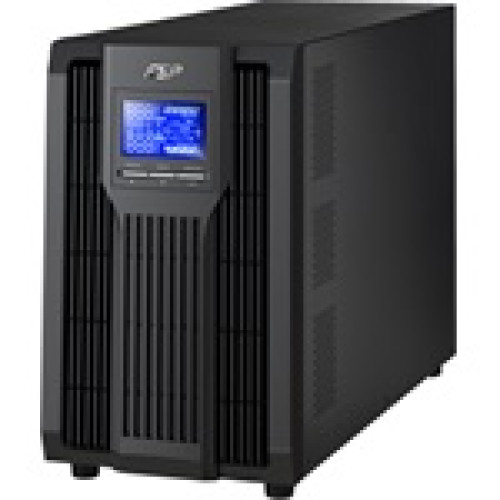

FSP Champ 3000VA tower szünetmentes tápegység

SOS UPS forródrót :
Telefon : +36 1 236-3060
Fax : +36 1 349-6721
Email : sosups@sosups.hu
Képzett mérnökök segítenek az FSP UPS üzemeltetésével kapcsolatos problémák megoldásában. A garanciális ügyintézés továbbra is nálunk történik.
FSP Champ is the high density version of double-conversion online UPS with a output power factor 0.9. It&rsquo,s designed in small cabinet with microprocessor controller. Champ also have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
Features:

True double-conversion
Microprocessor control optimizes reliability
Input power factor correction
Output power factor 0.9
Wide input voltage (120 V &ndash, 300 V)
Converter mode available
ECO mode for energy saving
Generator compatible
Charger capacity expansion to 6A for long-run models
Smart SNMP works well with either USB or RS-232 together
Comprehensive display allows easy monitoring and access of UPS status

 ,
 ,

Specifications:



Model
Champ TW 1K(L)
Champ TW 2K(L)
Champ TW 3K(L)


Capacity
1000 VA / 900W
2000 VA / 1800W
3000 VA / 2700W


Input Voltage Range
120-300 VAC ±,5%


Input Frequency
40Hz ~ 70Hz


Power Factor
&ge, 0.99 @ Nominal Voltage (100% load)


Output Voltage
±, 1% (Batt. Mode)


Output Frequency Range
47.5 Hz ~ 52.5 Hz or 57Hz ~ 63 Hz (Synchronized Range)50 Hz ±,0.25 Hz or 60 Hz ±,0.3 Hz (Batt. Mode)


Current Crest Ratio
3:1


Harmonic Distortion
&le, 3 % THD (Linear Load)&le, 6 % THD (Non-linear Load)


Output Transfer Time (Typical)
Zero (AC to DC)4ms (Inverter to Bypass)


Output Waveform (Batt. Mode)
Pure Sinewave


Battery Type &, Number
12V / 9Ah x 2
12V / 9Ah x 4
12V / 9Ah x 6


Backup Time (One PC load@120W)
N/A


Typical Recharge Time (up to 90% capacity)
4 hours


Indicators / AC Mode



Indicators / Battery Mode



Indicators / Battery level



Indicators / Load level



Indicators / Bypass mode



Indicators / Fault



Alarm / Battery Mode
Sounding every 4 seconds


Alarm / Low Battery
Sounding every second (Batt. Mode)


Alarm / Overload
Sounding twice per second


Alarm / Fault
Continuously sounding


Physical Dimension (mm)
282 x 145 x 220
397 x 145 x 220
421 x 190 x 318


Physical Net Weight (kg)Standard Model
9.8
17
27.6


Physical Net Weight (kg)Long-run Model
4.1
6.8
 ,7.4


Operating Environment / Humidity
20-90 % RH @ 0- 40°,C (non-condensing)


Operating Environment / Noise Level
Less than 50dB @ 1 Meter


Management / Optional USB / RS-232 Port
Supports Windows®, 98/2000/2003/XP/Vista/2008, Windows®, 7/8, Linux, and MAC


Optional SNMP
Power management from SNMP manager and web browser




CHAMP 3K TOWER KSH szám: 85044030
